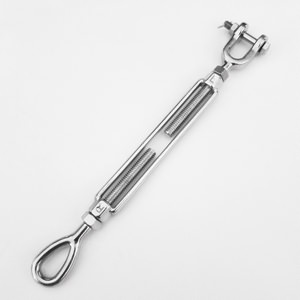

US Type Turnbuckle Eye And Fork

US Type Turnbuckle Eye And Fork
  • Item Number: 202
  • Size: 1/4-2 3/4
  • Material: AISI304 / AISI316
  • Product Description: US type turnbuckle eye and fork is widely used in USA. The fork end can be assembled and disassembled very conveniently.
Product Specifications
US Type Turnbuckle Eye And Fork Drawing
US Type Turnbuckle Eye And Fork Drawing
Size A B E G J K M N BB R S X WLL WT
inch inch inch inch inch inch inch inch inch inch inch inch inch lbs lbs
1/4×4 .25 .41 1.58 .62 11.35 7.35 11.90 7.90 4.00 .78 .34 1.75 500 .32
5/16×4-1/2 .31 .47 1.98 .87 13.71 8.71 13.90 9.40 4.50 .94 .44 2.09 800 .47
3/8×6 .38 .50 2.12 .87 16.81 10.81 17.38 11.38 6.00 1.12 .53 2.52 1200 .76
1/2×6 .50 .63 2.75 1.06 18.29 12.29 19.00 13.00 6.00 1.44 .72 3.23 2200 1.53
1/2×9 .50 .63 2.75 1.06 24.29 15.29 25.00 16.00 9.00 1.44 .72 3.23 2200 1.71
1/2×12 .50 .63 2.75 1.06 30.29 18.29 31.00 19.00 12.00 1.44 .72 3.23 2200 2.06
5/8×6 .63 .75 3.50 1.31 19.74 13.74 20.88 14.88 6.00 1.75 .88 3.90 3500 2.35
5/8×9 .63 .75 3.50 1.31 25.74 16.74 26.88 17.88 9.00 1.75 .88 3.90 3500 3.06
5/8×12 .63 .75 3.50 1.31 31.74 19.74 32.88 20.88 12.00 1.75 .88 3.90 3500 3.78
3/4×6 .75 .94 4.18 1.50 21.19 15.19 22.60 16.60 6.00 2.09 1.00 4.69 5200 4.00
3/4×9 .75 .94 4.18 1.50 27.19 18.19 28.60 19.60 9.00 2.09 1.00 4.69 5200 4.75
3/4×12 .75 .94 4.18 1.50 33.19 21.19 34.60 22.60 12.00 2.09 1.00 4.69 5200 5.36
3/4×18 .75 .94 4.18 1.50 45.19 27.19 46.60 28.60 18.00 2.09 1.00 4.69 5200 7.00
7/8×12 .88 1.13 4.85 1.75 34.34 22.34 36.32 24.32 12.00 2.38 1.25 5.10 7200 8.00
7/8×18 .88 1.13 4.85 1.75 46.34 28.34 48.32 30.32 18.00 2.38 1.25 5.10 7200 9.75
1×6 1.00 1.19 5.53 2.06 24.34 18.34 26.06 20.06 6.00 3.00 1.44 6.36 10000 8.92
1×12 1.00 1.19 5.53 2.06 36.34 24.34 38.06 26.06 12.00 3.00 1.44 6.36 10000 11.20
1×18 1.00 1.19 5.53 2.06 48.34 30.34 50.06 32.06 18.00 3.00 1.44 6.36 10000 13.30
1×24 1.00 1.19 5.53 2.06 60.34 36.34 62.06 38.06 24.00 3.00 1.44 6.36 10000 17.00
1-1/4×12 1.25 1.75 7.21 2.81 38.82 26.82 41.54 29.54 12.00 3.56 1.81 7.72 15200 20.00
1-1/4×18 1.25 1.75 7.21 2.81 50.82 32.82 53.54 35.54 18.00 3.56 1.81 7.72 15200 24.18
1-1/4×24 1.25 1.75 7.21 2.81 62.82 38.82 65.54 41.54 24.00 3.56 1.81 7.72 15200 28.50
1-1/2×12 1.50 2.06 7.88 2.81 40.50 28.50 43.50 31.50 12.00 4.06 2.12 8.62 21400 28.99
1-1/2×18 1.50 2.06 7.88 2.81 52.50 34.50 55.50 37.50 18.00 4.06 2.12 8.62 21400 35.00
1-1/2×24 1.50 2.06 7.88 2.81 64.50 40.50 67.50 43.50 24.00 4.06 2.12 8.62 21400 39.18
1-3/4×18 1.75 2.38 9.40 3.38 55.38 37.38 59.18 41.18 18.00 4.62 2.38 10.00 28000 53.75
1-3/4×24 1.75 2.38 9.40 3.38 67.38 43.38 71.18 47.18 24.00 4.62 2.38 10.00 28000 60.68
2×24 2.00 2.50 11.86 3.69 72.62 48.62 76.72 52.12 24.00 5.75 2.69 13.09 37000 89.00
2-1/2×24 2.50 2.88 13.56 4.44 75.80 51.80 82.18 58.18 24.00 6.50 3.12 13.78 60000 150.00
2-3/4×24 2.75 3.50 15.22 4.19 77.88 53.88 85.50 61.50 24.00 7.00 3.25 15.22 75000 183.00
