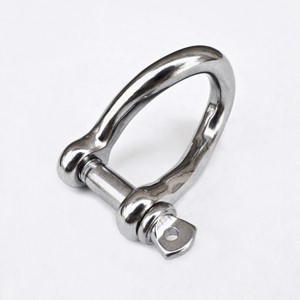

Twisted Shackle

Twisted Shackle
  • Item Number: 306
  • Size: M4-M12
  • Material: AISI304 / AISI316
  • Product Description: Twisted shackle can change the connecting direction by 90 degrees, which can make it reaching a special application. It's made by forging, so it offers a greater load strength.
Product Specifications
Twisted Shackle Drawing
Size(M) C H W D BL WT
mm mm mm mm mm mm mm
M4 4 23 8 8 500 0.010
M5 5 28 10 10 800 0.020
M6 6 33 12 12 1100 0.030
M8 8 44 16 16 2000 0.070
M10 10 55 20 20 3200 0.130
M12 12 66 24 24 4400 0.230
