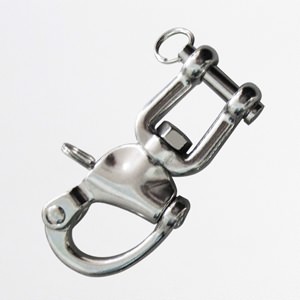

Swivel Snap Shackle With Jaw

Swivel Snap Shackle With Jaw
  • Item Number: 310
  • Size: 70mm-128mm
  • Material: AISI304 / AISI316
  • Product Description: Swivel snap shackle with jaw is general purpose snap shackle mainly for spinnaker halyards. Simply release the snap shackle by pulling the ring on the pin.
Product Specifications
Swivel Snap Shackle With Jaw Drawing
Size(L) A B WLL
mm mm mm kg
70 12 12 275
87 16 16 500
128 22 22 875
