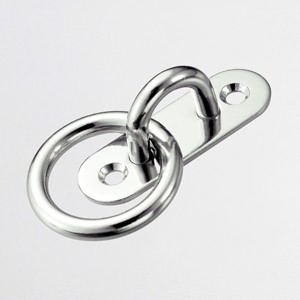

Pad Eye With Round Ring

Item Number: 712
Size: 3mm-9mm
Material: AISI304 / AISI316
Product Description: Pad eye with round ring is commonly used as deck fittings on boats and yachts, hard-wearing and versatile with uses ranging from vehicle trailers to home DIY.

Product Specifications

Size(ΦD)	A	B	d	W	H	T	L	WT	Price
mm	mm	mm	mm	mm	mm	mm	mm	kg	SS304	SS316
3	9	27	2.2	9.5	7	1.8	25	0.009	$0.44	$0.60
4	12	36	3.2	12.5	10	1.8	30	0.019	$0.46	$0.66
5	15	45	4.2	14	12.5	2	30	0.031	$0.54	$0.76
6	20	60	5.2	18	17	2	40	0.060	$0.74	$1.04
8	26	80	5.2	23	21	3	50	0.142	$1.32	$1.86
9	32	100	6.2	25	26	3	60	0.211	$3.40	$4.80
