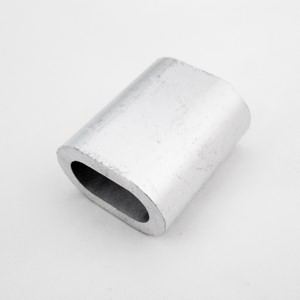

Oval Aluminium Ferrule

Oval Aluminium Ferrule
  • Item Number: 112
  • Size: 1mm-20mm
  • Material: Aluminum
  • Product Description: The aluminum oval aluminium ferrule can fit wire sizes from 1mm to 20mm for every project. Please choose the corresponding specifications according to the diameter of the wire rope.
Product Specifications
Oval Aluminium Ferrule Drawing
RopeΦ A B S L WT
mm mm mm mm mm kg/1000PCS
1 1.2 2.4 0.65 5 0.100
1.5 1.7 3.2 0.53 7 0.176
2 2.2 4.3 0.95 7.3 0.290
2.5 2.6 5.3 1 9.2 0.440
3 3.4 6.6 1.1 11 0.910
4 4.4 8.8 1.7 14 1.630
5 5.4 10.2 2.3 18 3.620
6 6.8 13.4 2.3 21 5.870
8 9 17.6 2.9 27.8 12.960
10 10.9 21.8 3.9 35 24.100
12 13.7 26.7 4.7 40 44.200
14 15.3 30.6 5.8 49 73.500
16 17.5 35 6.7 56 111.000
18 19.6 39.2 7.6 63 156.000
20 21.7 43.4 8.4 70 217.000
