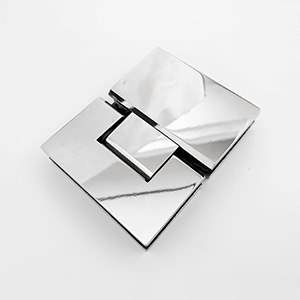

Glass Hinge 180°

Glass Hinge 180°
  • Item Number: 914
  • Size: T=8mm-10mm
  • Material: AISI304 / AISI316
  • Product Description: Glass hinge 180° is made of stainless steel with all moving parts (pins and springs) in stainless steel. Using two hinges the hinge will hold up to 40kgs with a maximum door width of 800mm. Using three hinges the hinge will hold up to 50kgs with a maximum door width of 800mm. The hinges Swings 90 degrees in and 90 degrees Out. Self-centering when within 15 degree of closed position.
Product Specifications
Spider With 4 Arms Drawing
Size L A B H M E D C F I K
mm mm mm mm mm mm mm mm mm mm mm mm
200 200 18 28 50 24 12 45 26 45 18 37
220 220 18 28 50 25 14 45 26 50 18 37
250 250 18 28 50 25 15 45 26 50 18 37
300 300 18 28 50 32 18 45 26 60 20 37
